Occupancy Detector HC 26

Occupancy Detector HC 26

Occupancy Detector HC 26• 2000 W
• 360° flush ceiling mount
• Occupancy Detector with IR remote controller

Features

  • 360°micro motion detectable
  • Ceiling surface mount design
  • Photo sensor inside for smart control
  • Run-on time adjustable-Ambient lux. setting adjustable
  • Up to 2000W loading
  • Smart RelayTMto protect product life
  • Support IR remote control for On/Off/Auto control
Specifications
Power requirement 220 ~ 240VAC / 50Hz
Loading 2,000W for incandescent
1000W for fluorescent (T8)
Detection Angle 360°
Detection Range @2.5m height F= 6m for micro motion
F= 10m for walk across motion
Run-on time setting 5 sec. ~ 15 min,
Ambient light setting 10 ~ 500 Lux.
Operation mode Auto/On/Off
Warm-up time Approximately 1 minute
Smart Relay Yes
Isolation Protection Class II
Water proof IP20
Working temp. -10°C~+40°C
Storage temp. -20°C~+70°C
Power consumption 1W maximum
Dimension (W*L*D) 126.6mm dia. X 71.2mm (D)

Dimension: mm (inch)

Occupancy Detector HC 26 Dimension

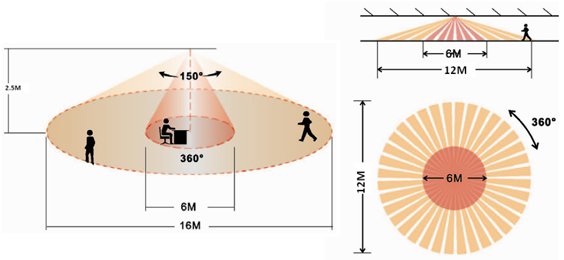

Detection Area -360°

Installation Height Sitting Walking
2.5 meter 28.27 M2
3m x 3m x 3.14
113.1 M2
6m x 6m x 3.14
Occupancy Detector HC 26 Detection

Application Example

Occupancy Detector HC 26 Application

Installation

Occupancy Detector HC 26 Installation

Wiring Terminals

Occupancy Detector HC 26 Wire TerminalsL : AC power input
N : AC power input
LS : AC power output to load

Connection Example

Occupancy Detector HC 26 Connection
