360° Ceiling Mount PIR SenSwitch LC-360

360° Ceiling Mount PIR SenSwitch LC-360

LC-360 is a 360 ceiling mount passive infrared SenSwitch designed for automatic lighting control of commercial/industrial applications.

By utilizing a specially designed omni-directional infrared sensor and fresnel lens, this SenSwitch is able to switch on the light when people enters its extensive detection coverage from any direction.

A built-in photocell sensor with different threshold can be set to enable the control function based on the ambient light level. Different light-on delay times can be selected by easy jumper head placement.

Download PDF

Features

  • Surface mount technology production
  • Built-in CdS photocell light sensor
  • Second-to-none square detection range
  • Easy TIME delay & LUX level selection
  • Automatic temperature compensation
  • Omni-directional detection capability
  • Detection range mask label provided
  • Superior RFI/EMI immunity protection
  • Recess mountable with MB-360
Specification
Power supply 110/ 230 VAC as unit rated
Maximum load 5A, 250 VAC for resistive load
Delay time 5"/30"/1'/3'/5'/20' jumper selection
Infrared sensor Omni-directional, dual element
Light sensor CdS photocell
Detection speed 0.1~3.0 m/sec.
Mounting height 2.4~3.6 m (8 ~ 12 ft)
Op. humidity Max 100% RH
Op. temperature -20C~50C (-4F~122F)
Dimensions 100 x 100 x 46 mm

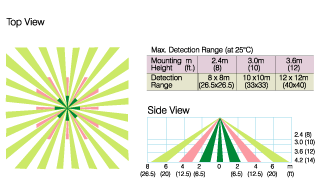

Detection Pattern

Pattern
