Infrared LED Sensor Lamp

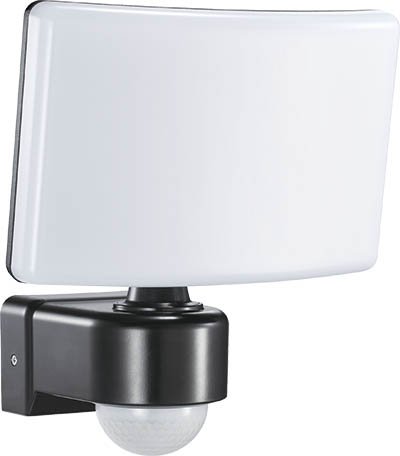

Infrared LED Sensor Lamp, HC-61

Infrared LED Sensor Lamp, HC-61

The product is an energy-saving automatic sensor lamp, adopting integrated circuit and precise detecting components. It gathers automatism, convenience, safety, saving-energy and practical functions. Its performance is stable. It can identify day and night. The lamp can turn on when one enters detection field and can turn off automatically when one leaves detection field.



Download PDF

Functions

  • Can identify day and night: The consumer can adjust working state in different ambient light. It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “3” position (min). As for the adjustment pattern, please refer to the testing pattern.
  • SENS adjustable: It can be adjusted according to using location. The detection distance of low sensitivity could be only 5m and high sensitivity could be 10m which fits for large room.
  • Time-Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment
  • Adjustable Time Delay: the length of time delay could be set according to the customers’ requirement, the minimum time of this item is 10sec ± 3sec, the maximum is 15min±2m
Specification
Power Source 220-240V/AC
Detection Range 240°
Power Frequency 50/60Hz
Detection Distance 5-10m(<24°C)adjustable
Ambient Light <3-2000LUX (adjustable)
Working Temperature -20~+40°C
Time Delay
.
Min.10sec±3sec
Max.15min±2min
Working Humidity <93%RH
Installation Height 1.8-2.5m
Rated Load 30W (2200LM)
Detection Moving Speed 0.6-1.5m/s
Additional switching capacity 500W IP Class: IP65
